BioNMR is a powerful and versatile technique that can provide detailed structures of macromolecules and information on how they interact with ligands. BioNMR can be used as a detection method for screening. It is especially well-suited for fragment screening, where weak binding is expected. BioNMR is complementary to X-ray crystallography since many molecules do not crystallize and BioNMR is performed in solution. Further, X-ray crystallography produces full structures, and is an all-or-nothing technique. BioNMR is more flexible; while it can produce full structures, it can also deliver high-value information with lower resolution, but at much greater speed.

NJ Bio has an established reputation for its expertise and capabilities in NMR research and analysis. Our newly inaugurated “Center for NMR Excellence” possesses state-of-the-art NMR instrumentation with highly skilled researchers and technical support. With the aid of advanced NMR equipment, we can provide timely and precise NMR data to accelerate our clients’ product development programs. This center is equipped with:

  • 800-MHz JEOL NMR spectrometer with cryoprobe
  • 700-MHz Bruker NMR spectrometer with cryoprobe
  • Two 500-MHz and one 300-MHz Agilent NMR spectrometers

NJ Bio’s BioNMR Services

NJ Bio offers a wide variety of BioNMR services:

BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services
BioNMR Services

Verification of screening hits and definition of binding locations

BioNMR is the gold standard method for sorting out binding behaviors. A 15N-labeled version of the protein is used, so only the protein is observed in the NMR spectrum. Solution conditions can be changed in real time and additions can be made. The status of each residue in the protein is monitored. Upon addition of a potential binder, the response of the protein reveals if the added molecule binds to the protein or not, and if the binding is clean or causes the protein to unfold or aggregate. Based on which residues respond, the binding location can be determined (sometimes called “footprinting”).

After any screen, hit validation is essential, especially for difficult targets (e.g., protein-protein interactions) where false hits may bind more strongly than authentic hits.

For true binders, the binding footprint can immediately allow modeling of the docked ligand, which is essential for guiding a chemistry optimization strategy. Also, absence of a BioNMR response reliably indicates non-binding; no other technique can do this.

The amount of protein required for this type of experiment would be approximately 1-3 mg and the amount of compound needed would be about 0.2 mg. Labeling of the protein with 15N can be done easily if the protein is expressed in E. coli, but labeling can also be accomplished in yeast or mammalian cells, if necessary.

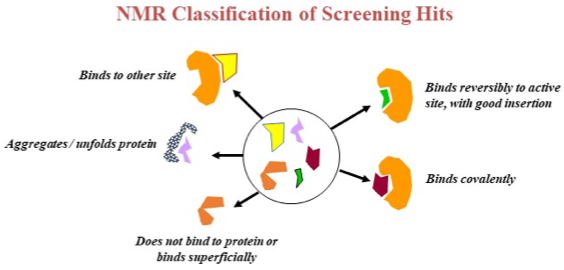

NMR Classification of Screening Hits

NMR is the “gold standard” method for hit validation.

NMR Spectrum

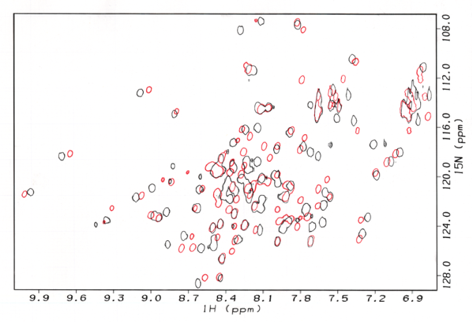

1H-15N-HSQC spectrum:
black = only protein; red = protein + compound.
Binding is validated.  Key residues are identified.

Mapping of Key Residues using NMR

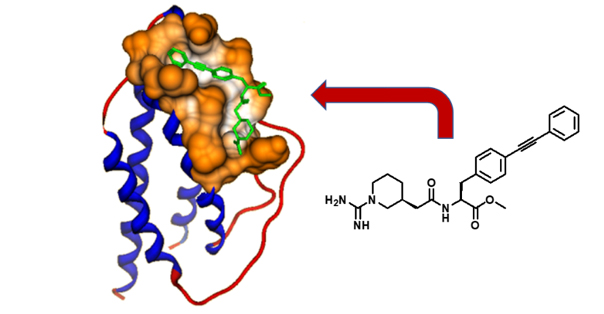

Mapping of key residues (on Interleukin-2 structure) indicates binding site.

NMR screening of fragment libraries to obtain leads and Targeted Protein Degrader (TPD) ligands

Beyond examining molecules that are already identified as hits by other methods, BioNMR can be used as the primary detection method in a screen. Potential binders can be added as mixtures to increase throughput. When there is a positive response, the mixtures are broken out to find the actual hit. Because BioNMR is so sensitive, it can reliably detect weak binding and therefore is the method of choice for a fragment screen.

At first glance, BioNMR would appear to be a low-throughput method. However, it is exceptionally efficient since detection and validation are obtained simultaneously. The overall throughput from screen to authentic leads is therefore comparable to other approaches.

Because chemical shift patterns are unique to every protein, it is possible to perform a BioNMR screen with multiple proteins present. The response can clearly identify the protein to which the hit binds. This methodology can dramatically increase throughput for a screening library or can be used to assess selectivity. BioNMR is the only technique that can do this.

Fragment Screening vs. Conventional Library

Fragment Screening is a more efficient way of exploring chemical space to find leads.

Simultaneous Screening to analyze binding

Simultaneous Screening can clearly distinguish which protein is binding the hit.

Elucidation of full detailed structures

BioNMR can provide 3D structures of proteins, protein-ligand complexes, oligonucleotides, peptides, macrocycles, and TPDs. While many proteins and oligonucleotides are amenable to X-ray crystallography and cryogenic electron microscopy, some are not. Further, because it is performed in solution, BioNMR can resolve concerns about the effects of crystal packing. BioNMR can also usually provide medium-resolution information faster than those other methods.

Typically, medium-sized macromolecules (e.g., peptides, macrocycles, TPDs) do not crystallize, but can be readily studied by BioNMR. BioNMR also allows the selection of any solvent condition. Detailed structures of these molecules can guide the design of analogs that are more potent, more stable, and/or more bioavailable.

NMR structure of MDM2 + RO0507470

Fry et al., (2004) J. Biomolec. NMR  30, 163. doi.org/10.1023/B:JNMR.0000048856.84603.9b

NMR structure of MDM2 + RO0507470.

Ras-binding domain of C-Raf-1
Emerson et al., (1995) Biochemistry 34 6911. doi.org/10.1021/bi00021a001

NMR structure of the Ras-binding domain of C-Raf-1

Application of advanced NMR methods to small molecules

The sophisticated NMR techniques needed to deal with macromolecules can be applied to smaller molecules, to answer complex questions of structure or stereochemistry. NMR can provide a rigorous verification of primary structure.

Small molecule spectra
Small molecule spectra
Small molecule spectra
Small molecule spectra

Examples of small molecule spectra.

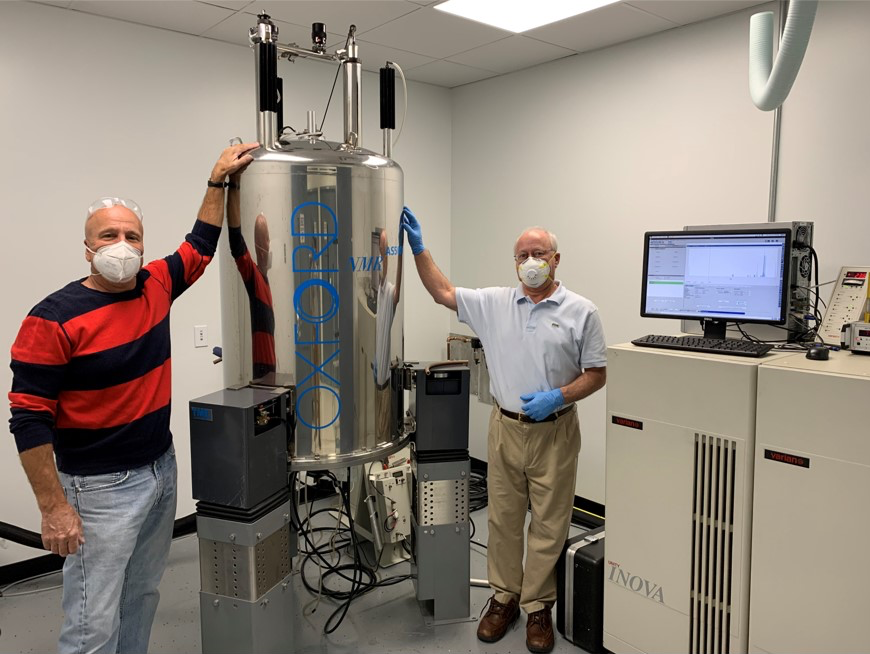

800 MHz, 700 MHz and 500 MHz NMR spectrometers

 Fig. 1. NMR Spectrometers at the “Center of NMR Excellence” at NJ Bio

 Fig. 1. NMR Spectrometers at the “Center of NMR Excellence” at NJ Bio
